MHI FDT 3Ph 10.0kW R32 Cassette System

MHI FDT 3Ph 10.0kW R32 Cassette System

Regular price $3,849.00 AUD
Sale price $3,849.00 AUD Regular price
GST inclusive

(Includes Grille, Not Includes Controller)

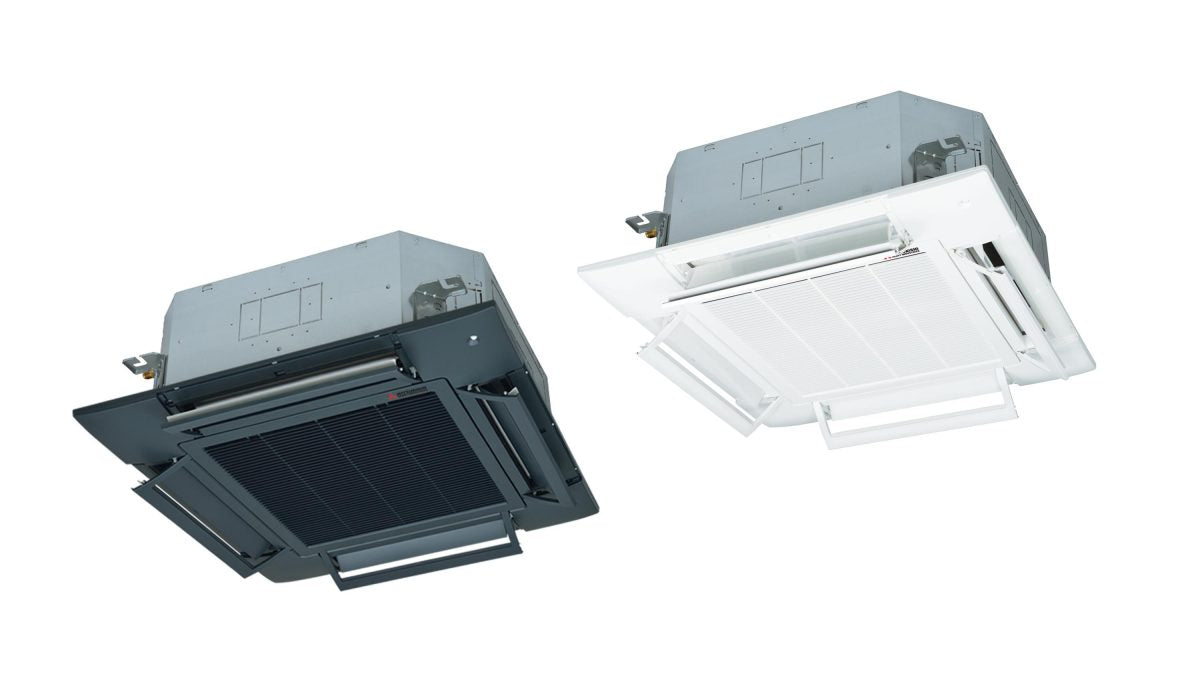

The Mitsubishi Heavy Industries FDT Series 10.0kW Cassette System (3 Phase) is a powerful ceiling-mounted air conditioning solution designed for commercial and large open-plan environments. Featuring 4-way airflow and advanced draught control, it delivers consistent comfort with high efficiency.

Key Features

  • 10.0kW Cooling / 11.2kW Reverse Cycle Heating performance
  • Three Phase Power Supply for high-demand applications
  • 4-way airflow cassette design for even air distribution
  • R32 refrigerant technology for improved energy efficiency
  • Draught Control Technology for enhanced comfort
  • Quiet operation suitable for commercial spaces
  • Optional motion sensor for energy saving

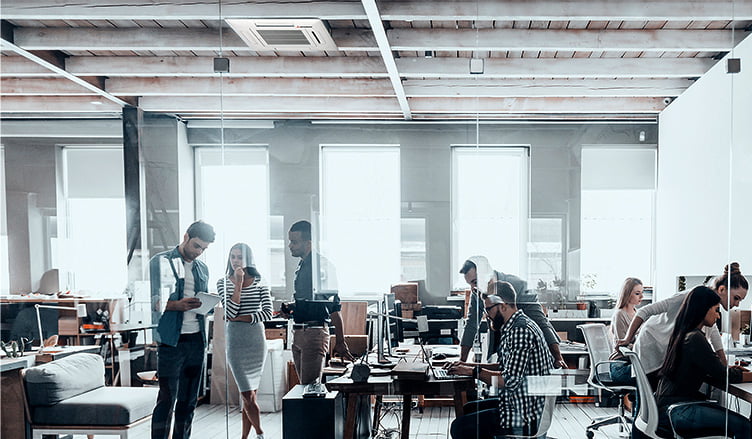

Perfect for offices, retail shops, restaurants, and large commercial spaces.

Series FDT Series
Cooling Capacity 10kW
Heating Capacity 11.2kW
View full details
  • Specifications
  • Support

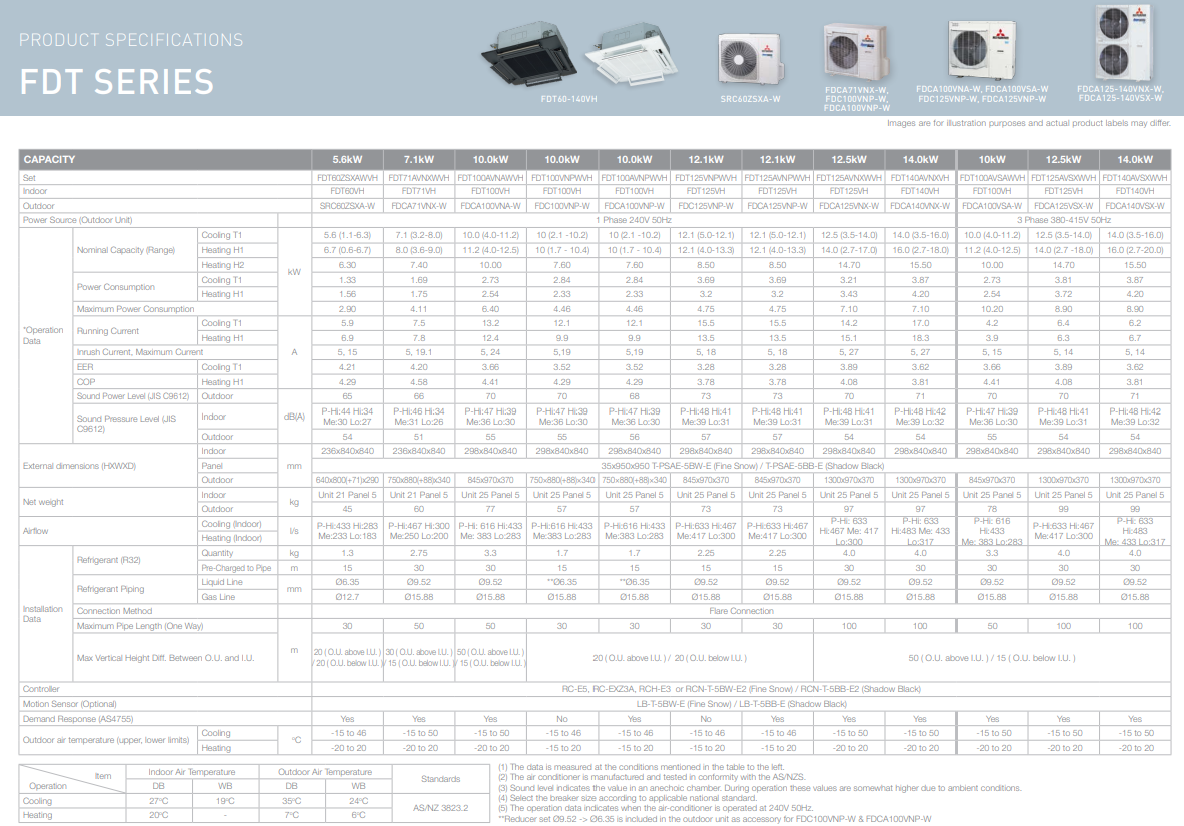

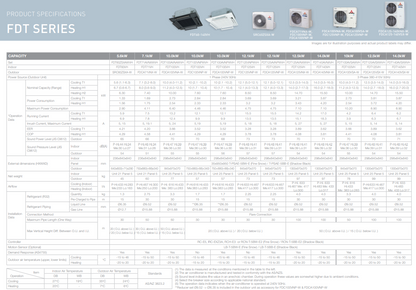

Specifications

Brand Mitsubishi Heavy Industries
Series FDT Series
Model Number FDT100VH/FDCA100VSA-W
Phase Three
Cooling Capacity 10kW
Heating Capacity 11.2kW

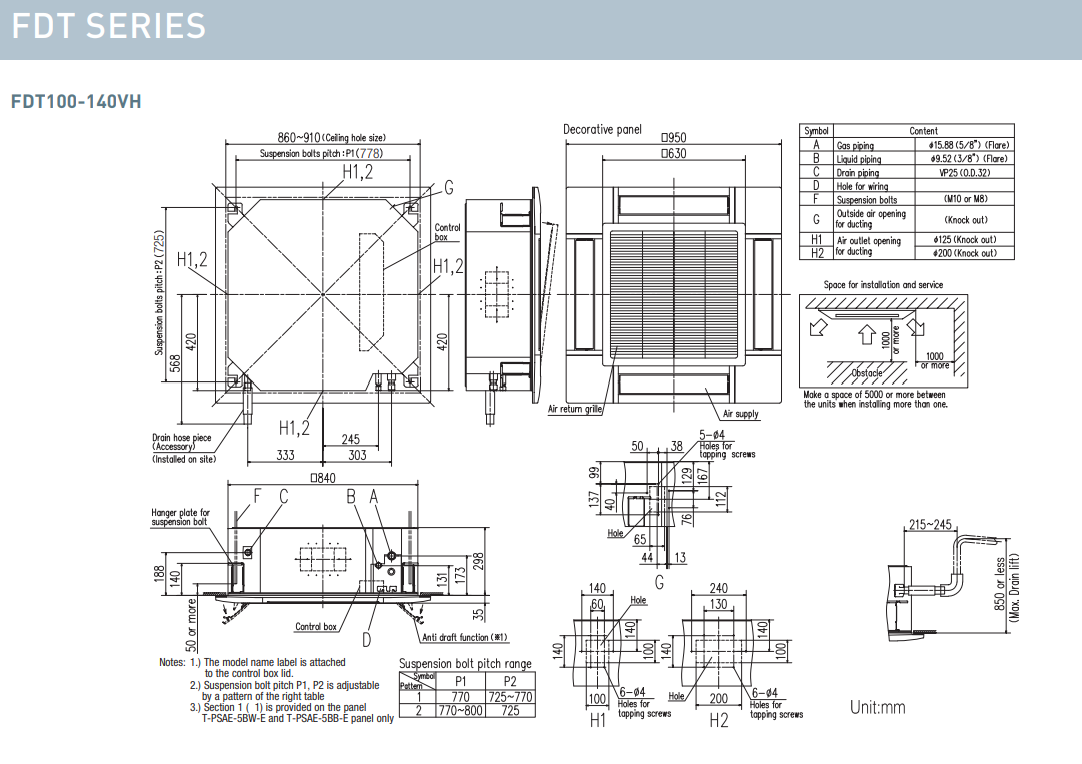

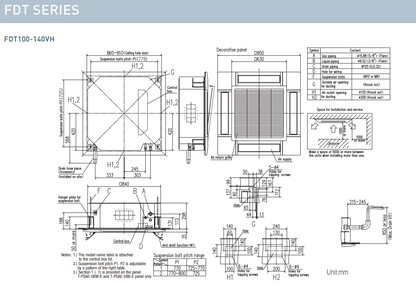

Indoor Unit - H x W x D 298×840×840(Body)/35×950×950(Panel)
Indoor Unit Weight 25(Body)/5(Panel)
Outdoor Unit - H x W x D 845x970x370
Outdoor Unit Weight 78kg
Pipe Size 3/8 - 5/8
Operation Type Reverse Cycle

Warranty Information

Manufacturer Warranty 5 Years
