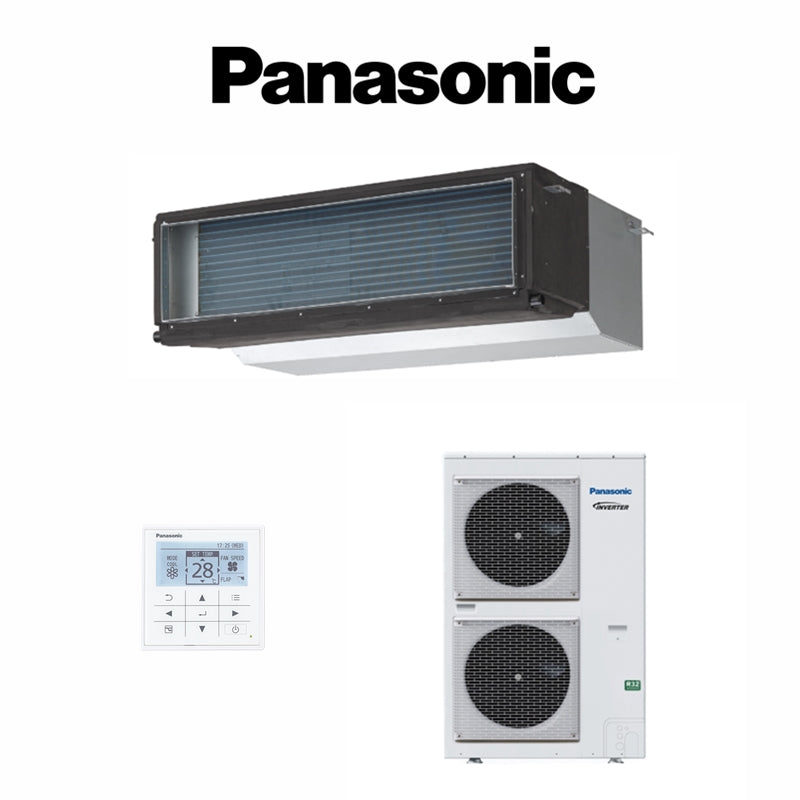

Panasonic R32 NX Series Deluxe model 3Ph 10kW Ducted Air Conditioner

Panasonic R32 NX Series Deluxe model 3Ph 10kW Ducted Air Conditioner

$4,999.00 AUD
$4,999.00 AUD
GST inclusive

The Panasonic R32 NX Series 10kW Ducted Air Conditioner is a powerful solution for large homes and commercial spaces, combining high static performance with nanoe™ X air purification technology. Designed for demanding installations, it delivers reliable heating, cooling, and cleaner indoor air in one system.

⭐ Key Features

  • 10.0kW Cooling / Reverse Cycle Heating
  • nanoe™ X Air Purification Technology
  • Three Phase Power Supply (3Ph) for high-demand applications
  • R32 Refrigerant for improved efficiency
  • High Static Pressure Design for long duct runs
  • Inverter Technology for energy-efficient operation
  • Quiet operation suitable for residential & commercial use
  • Flexible control options (Wi-Fi / wired / zoning compatible)
Series R32 NX Deluxe
Cooling Capacity 10.0kW
Heating Capacity 11.2kW
View full details
  • Specifications
  • Support

Specifications

Brand PANASONIC
Series R32 NX Deluxe
Model Number S-100PE3R/U-100PZ3R8
Phase Three
Cooling Capacity 10.0kW
Heating Capacity 11.2kW

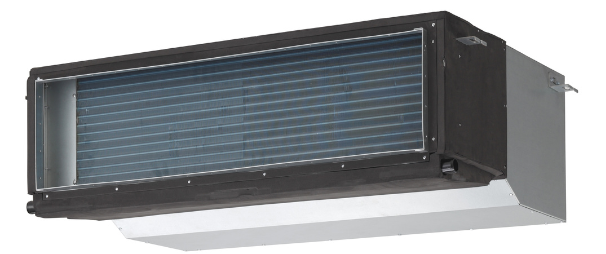

Indoor Unit - H x W x D 360mm x 1,200mm x 700mm
Indoor Unit Weight 37kg

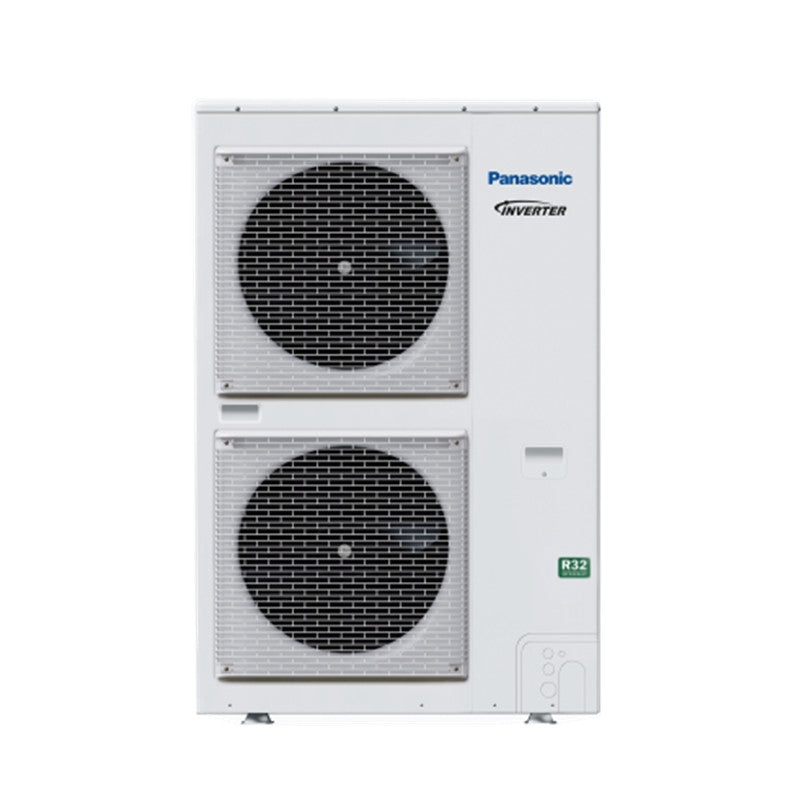

Outdoor Unit - H x W x D 1,416mm x 940mm x 340mm
Outdoor Unit Weight 99kg
Pipe Size 3/8 - 5/8
Operation Type Reverse Cycle

Warranty Information

Manufacturer Warranty 5 Years
